Go Direct Appliance

Goodman 2.5 Ton 14.3 Seer2 80K BTU 80% AC/Gas Split System

Goodman 2.5 Ton 14.3 Seer2 80K BTU 80% AC/Gas Split System

Regular price $3,225.00 USD
Regular price $3,542.00 USD Sale price $3,225.00 USD
Sale Sold out
System Type
Brand Name

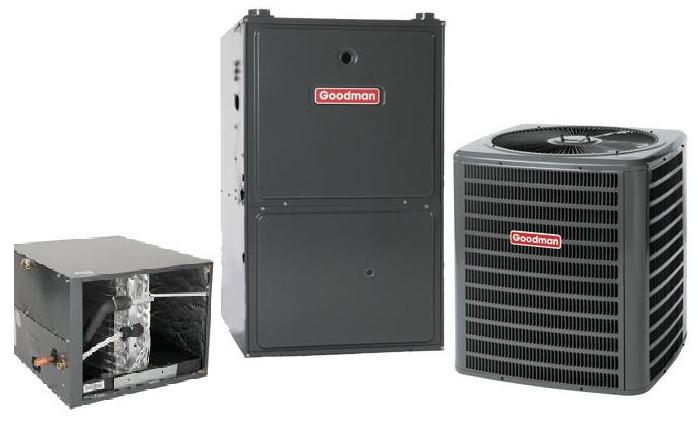

 Goodman 2.5 Ton 14.3 Seer2 Split System AC/Gas 80% w/ Evaporator Coil

Includes 2.5 ton condenser GSXN40301, a 2.5 ton gas furnace GM9S800805CN, and a vertical painted cased coil CAPTA3026C4.

10 Year Factory Warranty on all parts.


GSXN403010 (Condenser)

  • Energy-Efficient Compressor
  • Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • Service valves with sweat connections and easy-to-access gauge ports
  • Energy-efficient compressors are designed to efficiently deliver indoor comfort, possibly saving on monthly energy costs.
  • A single-speed permanent split capacitor (PSC) condenser fan motor is designed to provide consistent airflow for optimum system performance.
  • Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter''s residual system contaminants and moisture.
  • Fully charged with refrigerant sufficient for 15’ of tubing length to assist with easy installation of unit.
  • Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.

Technical Specifications

  • Model:GSXN4
  • Type:Split Air Conditioner
  • Efficiency:14.3 SEER2
  • Compressor:Single Stage
  • Energy Certified:No
  • Liquid Line Connection Size:3/8 in
  • SuctionLine:3/4 in
  • Maximum - Voltage253 V
  • Comfort Net Compatible:No
  • Product Shipping Weigh:t138.000 lb
  • Tonnage:1.5 - 5 tons

CAPTA3026C4 (Evaporator Coil)

  • Aluminum tube and aluminum fin coil construction
  • Grooved aluminum tubing
  • Every unit is helium pressure-tested during construction
  • Every all-aluminum coil
    is pressure-tested and
    vacuum tested

Technical Specifications

  • Mode:lCAPT Series
  • Type:Coil
  • Energy Certified:No
  • Liquid Line Connection Size:3/8 in
  • Comfort Net Compatible:No
  • Product Shipping Weight:46.000 lb
  • Tonnage:2.5 - 5 tons

GM9S800805CN (Furnace)

  • Heavy-duty aluminized-steel tubular heat exchanger
  • ""Silicon Nitride igniter""
  • Color-coded low-voltage terminals
  • Multi-speed ECM blower motor with continuous fan speed
  • Fault code LED Output
  • High reliability and quality
  • Durable and long igniter life
  • Provisions for electronic air cleaner and humidifier
  • Energy Efficient and quiet circulation
  • Self-diagnostic control board with constant memory

Technical Specifications

  • Model:GM9S80
  • Type:Gas Furnace
  • AFUE:0.8
  • Efficiency:0.8
  • Energy Certified:Yes
  • Comfort Net Compatible:No


Condenser: W29" x D29" x H39 1/2"

Cased Coil: W21" x D21" x H26"

Furnace: W21" x D19.5" x H33 3/8"


Links to Manufacturer Documents

Condenser Spec Sheets
Gas Furnace Spec Sheets
Cased Coil Spec Sheets
