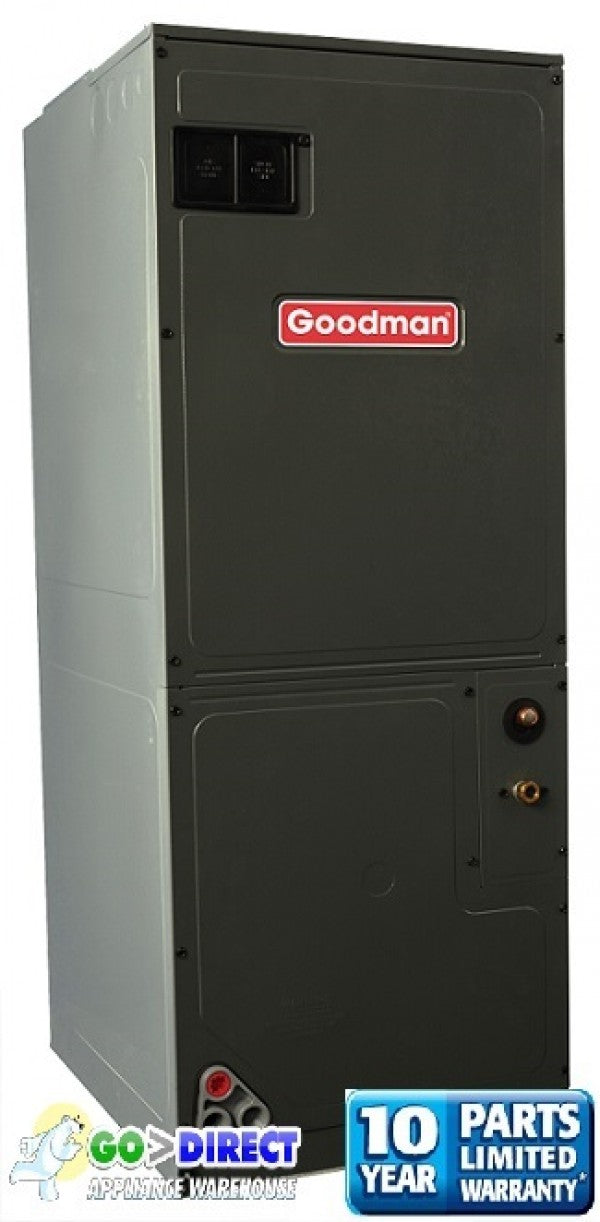

Goodman 2.5 Ton Variable Speed Air Handler AVPTC31C14

Goodman 2.5 ton Variable speed air handler AVPTC31C14

10 Year Factory Warranty on all parts

Made in America

1-877-296-5019

The Goodman® Multi-Position, Variable-Speed Air Handler is suitable for use with refrigerant R-410A (models ending in 14) and is compatible with the ComfortNet™ Communicating System family of products.

The AVPTC 's blower design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. This air handler is ideal for either new or retrofit installations.

Standard Features

• Compatible with the ComfortNet™ Communicating System family of products
• Maximum four low-voltage wires required for operation in communicating mode
• Auto configuration of the airflow and tonnage in communicating mode
• In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system’s CFM for each individual mode of operation
• R-410A refrigerant-compatible
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• Provides adjustable low CFM for efficient fan-only operation
• CFM indicator with front-panel sight glass
• Improved humidity control and comfort
• Compatible with variable-capacity heat pumps and cooling applications
• Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
• AHRI Certified; ETL Listed

Dimensions

H49" x W21" x D21"

Links to Manufacturer Documents

Specification Sheets
Consumer Brochure
