- Energy-Efficient Compressor
- Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- Service valves with sweat connections and easy-to-access gauge ports
1
/
of
1
Go Direct Appliance
Goodman 2 Ton 14.3 Seer2 60K BTU 80% AC/Gas Split System
Goodman 2 Ton 14.3 Seer2 60K BTU 80% AC/Gas Split System
Regular price
$3,010.00 USD
Regular price
$3,361.00 USD
Sale price
$3,010.00 USD
Unit price
/
per
Couldn't load pickup availability

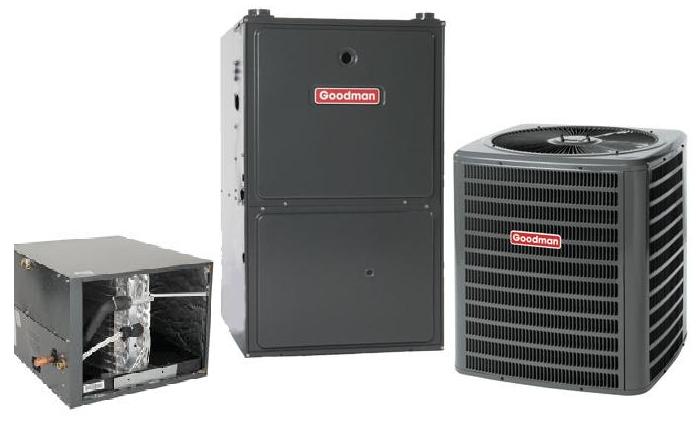

Goodman 2.0 Ton 14.3 Seer2 Split System AC/Gas 80% w/ Evaporator Coil
Includes 2.0 ton condenser GSXN40241, a 2.0 ton gas furnace GM9S800603BN, and a vertical painted cased coil CAPTA3022B4.
10 Year Factory Warranty on all parts.
1-877-296-5019
GSXN402410 (Condenser)
- Energy-efficient compressors are designed to efficiently deliver indoor comfort, possibly saving on monthly energy costs.
- A single-speed permanent split capacitor (PSC) condenser fan motor is designed to provide consistent airflow for optimum system performance.
- Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter''s residual system contaminants and moisture.
- Fully charged with refrigerant sufficient for 15’ of tubing length to assist with easy installation of unit.
- Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
Technical Specifications
- Model:GSXN4
- Type:Split Air Conditioner
- Cooling Capacity BTU18000 Btu/H
- Efficiency:14.3 SEER2
- Compressor:Single Stage
- Energy Certified:No
- Liquid Line Connection Size:3/8 in
- SuctionLine:3/4 in
- Maximum - Voltage253 V
- Comfort Net Compatible:No
- Product Shipping Weigh:t138.000 lb
- Tonnage:1.5 - 5 tons
CAPTA3022B4 (Evaporator Coil)
- Aluminum tube and aluminum fin coil construction
- Grooved aluminum tubing
- Every unit is helium pressure-tested during construction
- Every all-aluminum coil
is pressure-tested and
vacuum tested
Technical Specifications
- Mode:lCAPT Series
- Type:Coil
- Cooling Capacity:BTU30000
- Energy Certified:No
- Liquid Line Connection Size:3/8 in
- Comfort Net Compatible:No
- Product Shipping Weight:46.000 lb
- Tonnage:2.5 - 5 tons
GM9S800603BN (Furnace)
- Heavy-duty aluminized-steel tubular heat exchanger
- ""Silicon Nitride igniter""
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- High reliability and quality
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Self-diagnostic control board with constant memory
Technical Specifications
- Model:GM9S80
- Type:Gas Furnace
- AFUE:0.8
- Efficiency:0.8
- Energy Certified:Yes
- Comfort Net Compatible:No
Dimensions
Condenser: W26" x D26" x H32 1/2"
Cased Coil: W17.5" x D21" x H22"
Furnace: W17.5" x D16" x H33 3/8"
Links to Manufacturer Documents
Condenser Spec Sheets
Gas Furnace Spec Sheets
Cased Coil Spec Sheets
