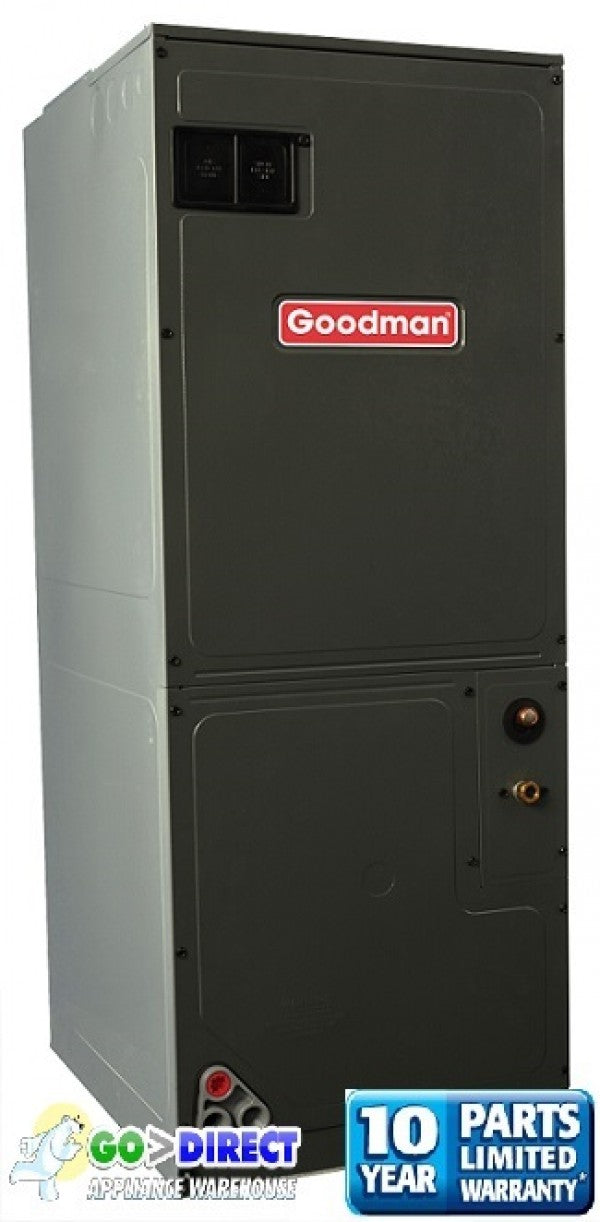

Goodman 3.0 Ton Variable Speed Air Handler AVPTC36C14
Goodman 3.0 Ton Variable Speed Air Handler AVPTC36C14
Regular price
$1,476.00 USD
Regular price
$1,476.00 USD
Sale price
$1,476.00 USD
Unit price
/
per
Goodman 3.0 ton Variable speed air handler AVPTC36C14
10 Year Factory Warranty on all parts
Made in America
1-877-296-5019
AVPTC36C14 (Variable Speed)
The Goodman® Multi-Position, Variable-Speed Air Handler is suitable for use with refrigerant R-410A (models ending in 14) and is compatible with the ComfortNet™ Communicating System family of products.
The AVPTC 's blower design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. This air handler is ideal for either new or retrofit installations.
Standard Features
- Compatible with the ComfortNet™ Communicating System family of products
- Maximum four low-voltage wires required for operation in communicating mode
- Auto configuration of the airflow and tonnage in communicating mode
- In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system’s CFM for each individual mode of operation
- R-410A refrigerant-compatible
- Factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- All-aluminum evaporator coil
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- Provides adjustable low CFM for efficient fan-only operation
- CFM indicator with front-panel sight glass
- Improved humidity control and comfort
- Compatible with variable-capacity heat pumps and cooling applications
- Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
- AHRI Certified; ETL Listed
Dimensions
H49" x W21" x D21"
Links to Manufacturer Documents
Specification Sheets
Consumer Brochure
